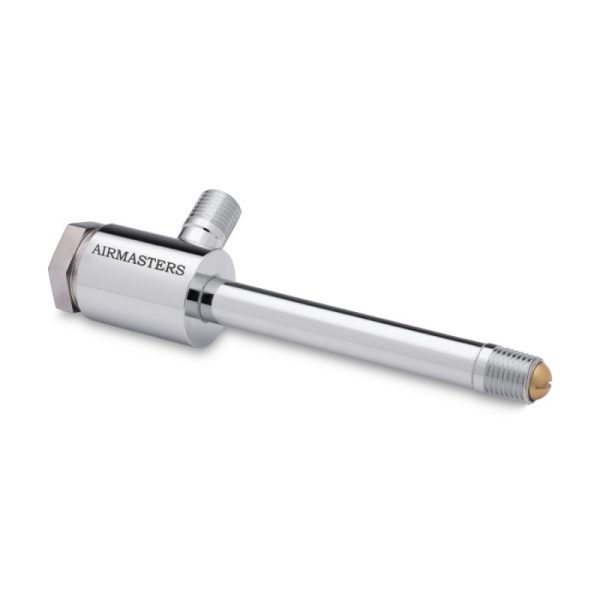

Vortex tube AIR-M30H, cooling capacity 2100 Btu/h, 615 watts, air consumption 850 l/min
For individual pricing, please log in.
For individual price display please Login
Or register quickly and easily:
- Immediate activation
- Purchase on account (from 2nd order), PayPal, Credit Card, Bank Transfer
- Our specialist consultants and engineers will take care of your machining task or technical question
- Same-day dispatch of tools and machines in stock
Vortex vortex tubes are made of stainless steel. Generators and valves are made of brass. This enables a wide range of applications and a long service life. Most competitor pipes only have plastic generators. Vortex vortex tubes are therefore particularly suitable for use at high temperatures and therefore require no additional investment. The temperatures generated can range from -46ºC to + 127ºC. The design and material quality of Vortex vortex tubes guarantee long-term reliable results without maintenance. Vortex vortex tubes work with a standard compressed air supply. The air entering the vortex tube is split into two air streams: cold air comes from one end of the tube and hot air from the other. The vortex tube has an adjustable valve at the “hot” end, which regulates the volume and temperature of the air flowing out on the cold side. This adjusts the “cold fraction”, i.e. the percentage of compressed air that exits at the cold end of the tube. There are different generator models for different compressed air outputs. We recommend an air pressure of 7 bar.
| Material | Stainless steel, Stainless steel |
|---|---|
| Material des Generators | |
| Garantie | 10 years |
| Abmessungen | |
| Anschluss | Male 1/4" |
| Kälteleistung (Btu/h) | |
| Kälteleistung (Kcal/h) | |
| Kälteleistung (Watt) | 615 watts |
| Luftverbrauch (l / min) | |
| Lärmpegel (dB(A)) |
