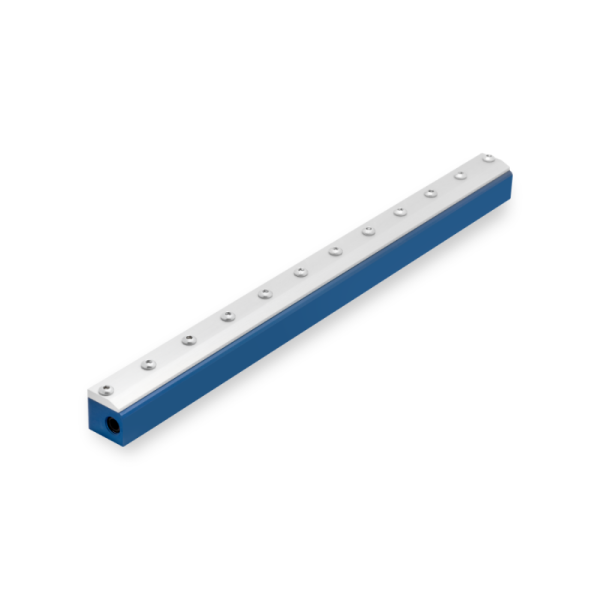

Standard air curtain STD03, L:76 mm, air flow amplification: 30:1, aluminum
Für individuelle Preisanzeige bitte anmelden.
For individual price display please Login
Or register quickly and easily:
- Immediate activation
- Purchase on account (from 2nd order), Paypal, credit card, bank transfer
- Our specialist consultants and engineers will take care of your machining task or technical question
- Same-day dispatch of tools and machines in stock
The standard air curtain is easy to install and maintain. It reduces compressed air consumption and noise levels. The air curtain generates a uniform laminar air flow over its entire length. Utilizing the COANDA EFFECT, a fast, funnel-shaped air flow is formed, which “entrains” a large volume of ambient air. In this way, an air flow up to 30 times greater can be achieved with a small amount of compressed air. Due to the savings in air pressure, the additional expense for the standard air curtain often pays for itself after just a few weeks in some applications. Our standard air curtains are available in two versions: anodized aluminium and stainless steel. Suitable for applications at high temperatures and in corrosive environments.
| Abstandsfolien | Stainless steel, Stainless steel |
|---|---|
| Anschluss | Female, Female |
| Anschluss hinten | 1/4" x 1, 1/4" x 1 |
| Form Luftstrom | Even, Even |
| Maximaler Verbrauchsdruck | 10 bar, 10 bar |
| Geräuschpegel bei 5 bar | 81dB(A) |
| Blaskraftregulierung bei 5 bar | 1.9 N, 1.9 N |
| Luftverbrauch bei 5 bar | 16 Nm³/h |
| Luftstromverstärkung | 30:1 |
| Material | Aluminium oder rostfreier Stahl |
| Abmessungen | 76 mm x 31,8 mm x 31,3 mm |
| Geschwindigkeit bei 152 mm | 50 m/s |
