Enclosure cooler CC8-IP54, cooling capacity 580 Btu/h, air consumption 227 l/min, stainless steel
Für individuelle Preisanzeige bitte anmelden.
For individual price display please Login
Or register quickly and easily:
- Immediate activation
- Purchase on account (from 2nd order), Paypal, credit card, bank transfer
- Our specialist consultants and engineers will take care of your machining task or technical question
- Same-day dispatch of tools and machines in stock

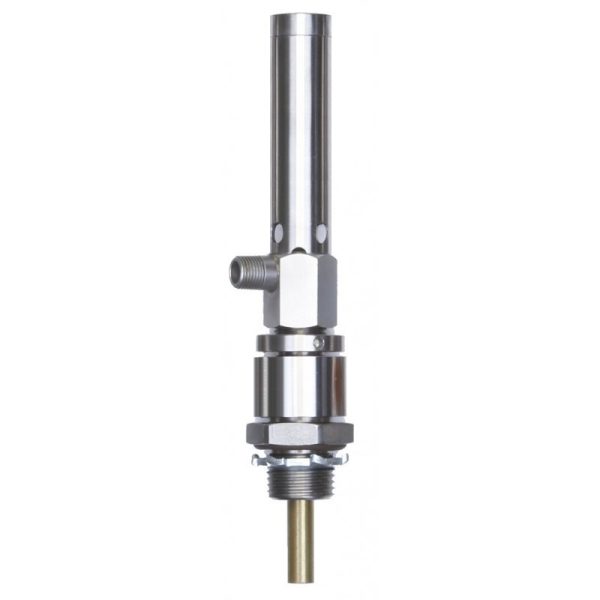

The enclosure cooler is a cost-effective solution for cooling electrical and electronic enclosures. The enclosure cooler contains a vortex tube that converts compressed air into cooling air. Our enclosure coolers are made entirely of stainless steel, including the vortex tube. Our enclosure coolers contain no moving parts. Thanks to their compact design, our enclosure coolers can be attached to the top or side of the enclosure in a matter of minutes through a drilled hole or an electrical knock-out hole. They are particularly suitable for enclosures with IP54, IP14 and IP66 protection ratings and are available with different cooling capacities. 316L stainless steel models are also available. We recommend the installation of a filter, solenoid valve and thermostat. Our enclosure coolers are perfect for ambient temperatures up to +67°C. A special model for extreme temperatures up to +93°C and above is also available.
| Material | Stainless steel, Stainless steel |
|---|---|
| Material des Generators | Messing |
| Anschluss | Männlich 1/8" |
| Garantie | 10 Jahre |
| Kälteleistung (Btu/h) | 580 Btu/h |
| Kälteleistung (Kcal/h) | 146 Kcal/h |
| Kälteleistung (Watt) | 170 Watt |
| Luftverbrauch (l / min) | 227 l/min |
| Lärmpegel (dB(A)) | 75 dB(A) |
| Abmessungen | 161 mm x Ø 19 mm |
| Schutzgrad | IP54 |
