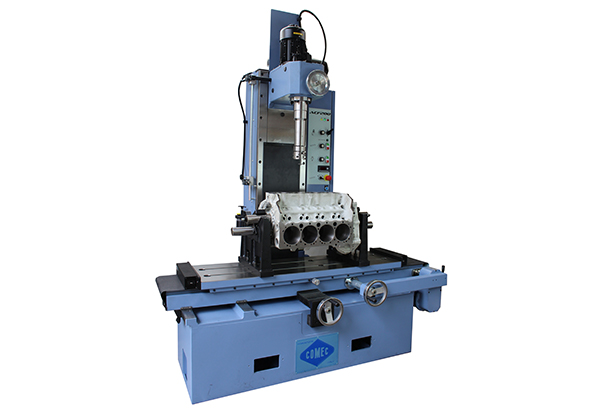

The ACF200 cylinder boring and milling machine covers the two main machining processes in the reworking of cylinder blocks for light and heavy vehicles: Boring and regrinding. Despite its compact dimensions, the ACF200 offers a considerable working capacity thanks to the wide longitudinal and transverse feed of the table and the vertical feed of the head. The excellent characteristics of precision and accurate finishing are the result of a combination of a proven mechanical structure and innovative technical solutions that improve the machine’s performance.
Standard equipment:
- Variable spindle speed with digital display
- Variable spindle feed
- Variable table feed (only for ACF version)
- 1/2″ CBN or PCD milling plate dia. 350 mm
- Tool setting Dial gauge with magnetic base
- Drilling depth device with dial gauge
- Precision centering device with dial gauge
- Adjustable limit switches
- PV0160 Pair of parallel supports h = 190 mm
- Service Wrenches
- Instructions
| Leistung des Spindelmotors | 1.5 kW |
|---|---|
| Bohrbereich | 30-170 mm |
| Leistung Motor für schnellen Vorschub | 0.37 kW |
| Max. vertikaler Bewegung des Kopfes | 670 mm |
| Max. Tisch-Querverschiebung | 200 mm |
| Einstellbare Spindeldrehzahl | 75-850 rpm |
| Einstellbarer Bohrstangenvorschub | 0-175 mm/min. |
| Einstellbarer Tischvorschub | 0-460 mm/min. |
| Leistung des Tischvorschubmotors | 0.55 kW |
| Abmessungen LxBxH | 1860x1150x2170 mm |
| Gewicht | 1380 Kg |
| Min.- max. Abstand vom Kopf zum Tisch | 370-1020 mm |
| Abstand zwischen Spindel C/L und Säule | 290 mm |
| Oberfläche des Tisches | 1340×370 mm |
| Max. Tisch-Längsverschiebung | 1200 mm |
