ACF200.CNC combines the two most important operations in the reconditioning of car and truck monoblocks, namely boring and smoothing, in a single machine, now fully automatic thanks to the CNC control. The excellent characteristics of precision and accurate finishing are the result of a combination of a proven mechanical structure and innovative technical solutions that improve the machine’s performance.
Standard equipment:
- Computer numerical control with LINUX operating system and ARMv8 CPU processor
- Precision ball screws on 3 axes
- Movements by linear rails on 3 axes
- Brushless motors on 3 axes controlled by CNC

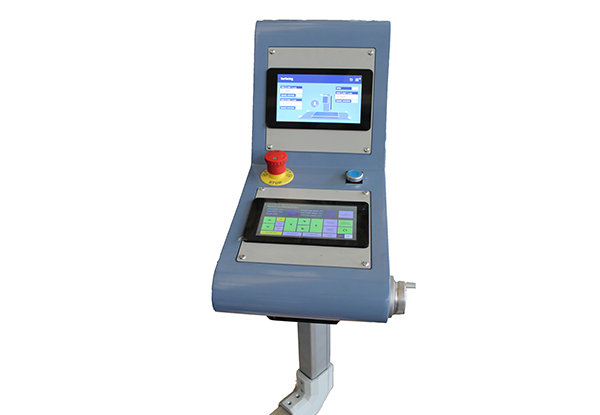

- Swivel arm control panel with double touch screen
- Electronic handwheel for manual movement on 3 axes (fast-medium-fine speeds)
- Fully automatic and programmable working modes for drilling and milling operations
- WI-FI and LAN connections for support and service
- PV0160 Pair of parallel supports
- PV0021 large clamps (2 pcs.)
- PV0022 small clamps (4 pcs.)
- Set of wrenches
- Operating instructions
| Leistung des Spindelmotors | 1.5 kW |
|---|---|
| Bohrbereich | 30-170 mm |
| Max. Tisch-Querverschiebung | 200 mm |
| Einstellbare Spindeldrehzahl | 75-850 rpm |
| Min.- max. Abstand vom Kopf zum Tisch | 370-1020 mm |
| Abstand zwischen Spindel C/L und Säule | 290 mm |
| Oberfläche des Tisches | 1340×370 mm |
| Max. Tisch-Längsverschiebung | 1200 mm |
| Max. vertikaler Bewegung des Kopfes | 700 mm |
| Einstellbarer Bohrstangenvorschub | 0-3000 mm/min. |
| Einstellbarer Tischvorschub | 0-3000 mm/min. |
| Leistung des Motor für schnellen Vorschubs | 1.27 N/m |
| Motorleistung Tisch- und Traversenvorschub | 1.27 N/m |
| Abmessungen LxBxH | 1.27 N/m |
| Gewicht | 2045x1245x2175 mm |
