Camshaft boring machine for cylinder heads and engine blocks LBM950
Für individuelle Preisanzeige bitte anmelden.
For individual price display please Login
Or register quickly and easily:
- Immediate activation
- Purchase on account (from 2nd order), Paypal, credit card, bank transfer
- Our specialist consultants and engineers will take care of your machining task or technical question
- Same-day dispatch of tools and machines in stock

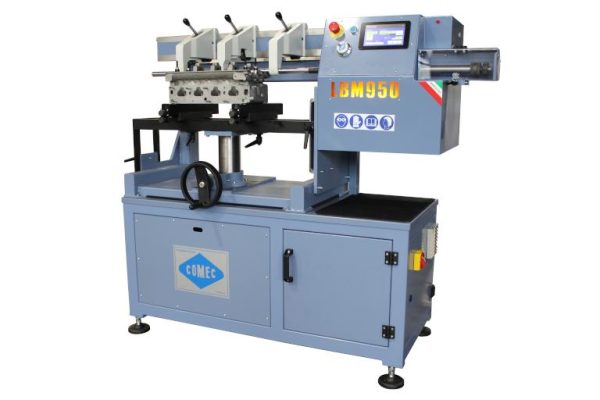

The LBM950 camshaft boring machine enables the machining of housing bores in both camshaft cylinder heads and crankshaft blocks of passenger cars and light commercial vehicles. The innovative chrome rod drive system combines the two drilling feed and rotation movements and consists of a linear ball bearing unit that ensures smooth and precise movement. In addition, it has a belt drive that enables controlled rotation of the bar tool holder. All operations related to the boring bar, such as manual movements, setting of working parameters and automatic cycles, are managed via a touch screen panel which, combined with an electronic handwheel, makes using the LBM950 extremely intuitive, simple and very productive. The boring bar is held by three sturdy, movable arms that provide great support during machining, while perfect and fast centering of the workpiece is made possible thanks to the fine adjustment knobs, both in height and in transverse movement. This is further supported by centering devices with dial gauges. This versatile and useful device simplifies and speeds up the clamping process for all types of cylinder heads and blocks.
Standard equipment:
– Rod displacement in linear guides with ball screw drive system
– Bar displacement/rotation by brushless motors
– Touchscreen control panel
– Operating software for manual and automatic work sequences
– Electronic handwheel for manual movement
– Basement with equipment storage
– Drill rod support arms
– Universal head clamping device
– Dia. 24÷85 mm L= 800 mm Chrome-plated tool holder bar
– Diameter 50÷85mm Tool holder ring for blocks
– Set of drilling tools
– Centering device with dial gauge AC0093 (2 pcs.)
– Tool setting device complete with dial gauge with micrometer AC0091
– Set of fixing screws for cylinder heads
– Set of wrenches
– Instructions for use
| Kapazität der Bohrung | 24 – 85 mm |
|---|---|
| Max. Bohrstangenweg | 190 mm |
| Min.-max. Abstand Höhe Stütze-Stange C/L | 100 – 376 mm |
| Max Zylinderkopf- und Blocklänge | 810 mm |
| Max. Zylinderkopf- und Blockbreite | 300 mm |
| Variable Spindeldrehzahl | 0 – 1000 U/min |
| Verfahrgeschwindigkeit der Spindel | 0 – 5000 mm/min |
| Leistung des Vorschubmotors | 1,27 Nm |
| Leistung des Spindeldrehmotors | 0,68 Nm |
| Abmessungen LxBxH | 1780x800x1385 mm |
| Gewicht | 375 kg |
