Blowing nozzles

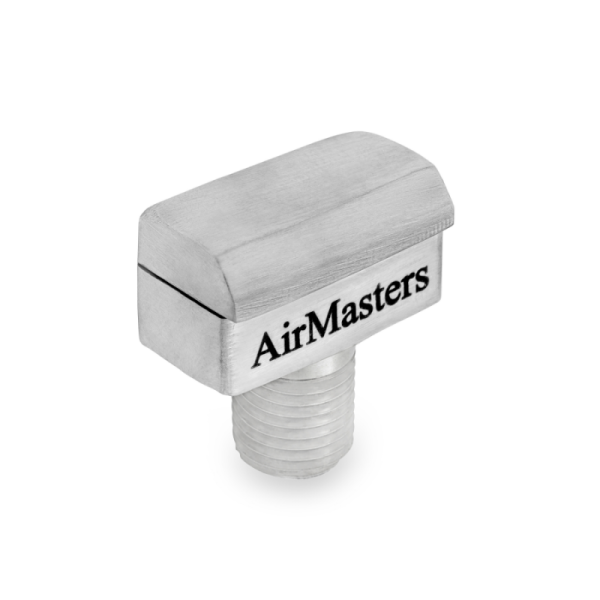

AIR-M147S-316L blowing nozzle, blowing force regulation at 5 bar: 3.4 N, air consumption at 5 bar: 16.5 Nm³/h, stainless steel 316L

Name: AIR-M147S-316L blowing nozzle, blowing force regulation at 5 bar: 3.4 N, air consumption at 5 bar: 16.5 Nm³/h, stainless steel 316L - Walter Krupp
SKU: VVIGJPH4
Price: 103.00 EUR
Availability: InStock

Add to wishlist

Read product description

For individual pricing, please log in.

Add to wishlist

For individual price display please Login

Or register quickly and easily:

Immediate activation
Purchase on account (from 2nd order), PayPal, Credit Card, Bank Transfer
Our specialist consultants and engineers will take care of your machining task or technical question
Same-day dispatch of tools and machines in stock

Description
Technische Informationen

The Airmasters range of compressed air blowing nozzles is the largest selection in the world! Ideal where blow-off requires a high technical standard and where high noise levels and consumption cause serious problems. Blowing off, cooling and drying are just a few examples of applications where our air blast nozzles are used.
The blow nozzles are designed to deliver a powerful jet of air while minimizing compressed air consumption and noise levels. Savings: Our blow nozzles replace pipes with a diameter of 2 mm to 25 mm, enabling energy savings and a return on investment within a few weeks! Our tuyeres are available in 316L stainless steel, 304 stainless steel, aluminum and zinc.
Safety: All our nozzles comply with OSHA and SUVA standards, which means that the air blown out of the nozzle must not exceed a pressure of 2.1 bar when in contact with the operator’s skin. This eliminates the risk of embolism if air is blown under the skin through an open wound. Noise: Airmasters’ blowing nozzles guarantee a reduction in noise levels of more than 50% compared to an open tube or homemade device.

SKU: VVIGJPH4 Kategorie: Blowing nozzles

Description
Technische Informationen

Form Luftstrom	Even, Even
Maximaler Verbrauchsdruck	10 bar, 10 bar
Geräuschpegel bei 5 bar	77 dB(A), 77 dB(A)
Entspricht den OSHA-Richtlinien	Yes, Yes
Material	Stainless steel 316L, Stainless steel 316L
Anschluss	Männlich 1/8” BSP
Blaskraftregulierung bei 5 bar	3.4 N
Luftverbrauch bei 5 bar	16,5 Nm³/h
Niedriger Geräuschpegel	18dB(A)
Abmessungen	25×19,5×14,7mm
Ersetzt offenes Rohr	3-4 mm
Lufteinsparung Nm³ / h	15 Nm³/h

AIR-M147S-316L blowing nozzle, blowing force regulation at 5 bar: 3.4 N, air consumption at 5 bar: 16.5 Nm³/h, stainless steel 316L
