Extra air curtains

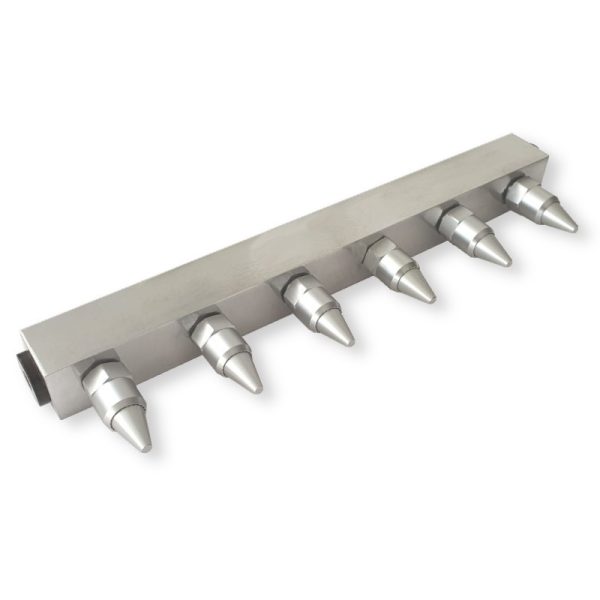

Extra LR06 air curtain, 6-way distributor with 6 pre-mounted AIR-M104 aluminum air nozzles
Read product descriptionFür individuelle Preisanzeige bitte anmelden.
For individual price display please Login
Or register quickly and easily:
- Immediate activation
- Purchase on account (from 2nd order), Paypal, credit card, bank transfer
- Our specialist consultants and engineers will take care of your machining task or technical question
- Same-day dispatch of tools and machines in stock
The Extra LR air curtains are available with 2, 3, 4 and 6 nozzles in aluminum or stainless steel 304 and 316L. The Extra LR air curtains replace perforated pipes and significantly reduce noise levels and air consumption while ensuring high resistance to mechanical wear.
The standard nozzle used for these air curtains is the AIR-M104 model.
| Anschluss | Female, Female |
|---|---|
| Maximaler Verbrauchsdruck | 10 bar, 10 bar |
| Material | Eloxiertes Aluminium, rostfreier Stahl 304 oder 316L |
| Luftverbrauch bei 5 bar | 101 Nm³/h |
| Blaskraftregulierung bei 5 bar | 22.5 N |
| Luftstromverstärkung | 35:1 |
| Form Luftstrom | Rund |
| Geräuschpegel bei 5 bar | 84 dB(A) |
| Abmessungen | 306 mm x 75 mm x 25 mm |
| Anschluss hinten | 3/4 x1 |
| Seitlicher Anschluss | 3/4 x2 |
