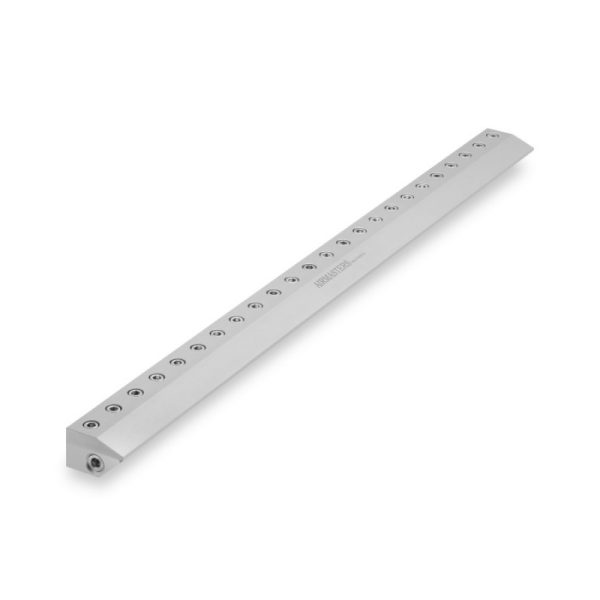

Air curtain Airmasters 02-51mm, airflow amplification 40:1, stainless steel
Read product descriptionFür individuelle Preisanzeige bitte anmelden.
For individual price display please Login
Or register quickly and easily:
- Immediate activation
- Purchase on account (from 2nd order), Paypal, credit card, bank transfer
- Our specialist consultants and engineers will take care of your machining task or technical question
- Same-day dispatch of tools and machines in stock
The Silent AIRMASTERS air curtain is easy to install and maintain. Thanks to its greatly reduced compressed air consumption and noise level, it is the most efficient of the air curtains and still offers optimum airflow. The Silent AIRMASTERS air curtain generates a uniform laminar air flow over its entire length. Utilizing the COANDA EFFECT, a fast, funnel-shaped air flow is formed, which entrains a large volume of ambient air. In this way, an air flow up to 40 times higher is achieved with little compressed air input. Due to the air pressure savings, the investment in the AIRMASTERS air curtain often pays for itself after just a few weeks in some applications. The air curtains are available in anodized aluminium and stainless steel. The hard-anodized aluminium can replace the steel version in some applications and is therefore a more cost-effective solution. The internal spacer foils are made exclusively from stainless steel.
| Geräuschpegel bei 5 bar | 67dB(A), 67dB(A) |
|---|---|
| Abstandsfolien | Stainless steel, Stainless steel |
| Abmessungen | 51 mm x 44.5 mm x 27.6 mm, 51 mm x 44.5 mm x 27.6 mm |
| Anschluss | Female, Female |
| Anschluss hinten | 1/4" x 1, 1/4" x 1 |
| Form Luftstrom | Even, Even |
| Geschwindigkeit bei 152 mm | 57 m/s, 57 m/s |
| Maximaler Verbrauchsdruck | 10 bar, 10 bar |
| Blaskraftregulierung bei 5 bar | 1.4 N, 1.4 N |
| Luftverbrauch bei 5 bar | 8.5 Nm³/h, 8.5 Nm³/h |
| Luftstromverstärkung | 40:1, 40:1 |
| Material | Anodized aluminium or stainless steel, Anodized aluminium or stainless steel |
